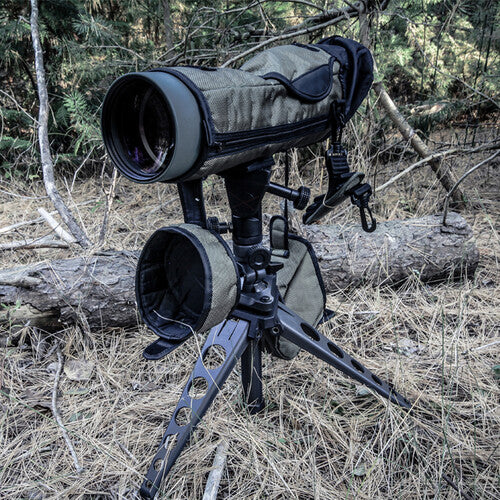

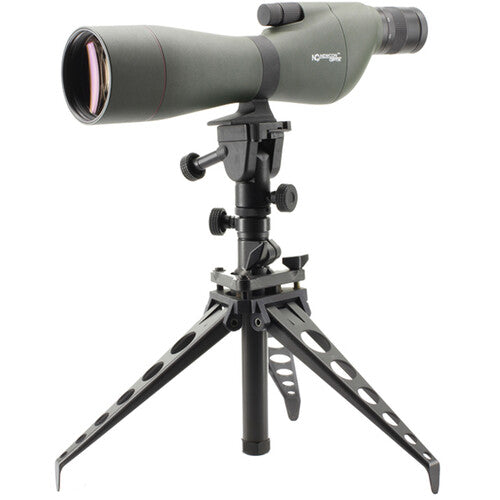

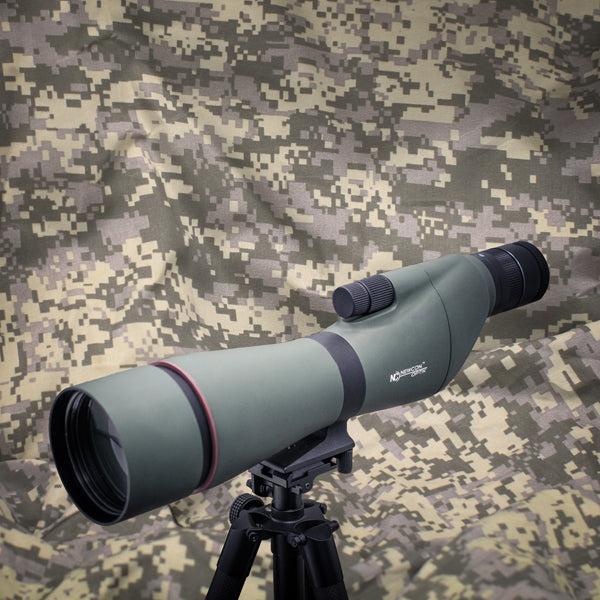

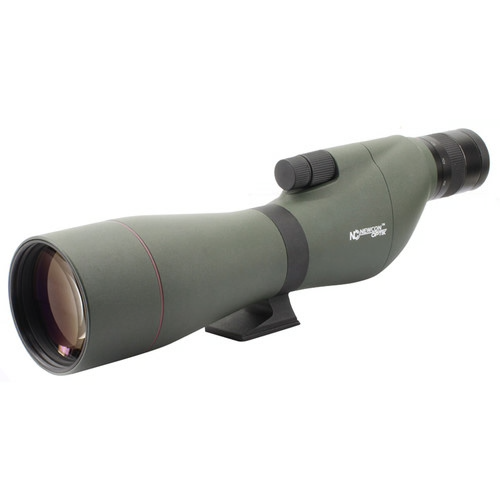

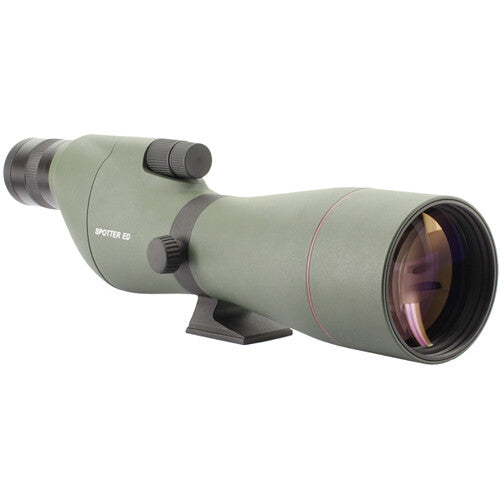

Newcon Optik - Spotter ED

Whether you are at the range or in the field, SPOTTER ED’s extra low dispersion (ED) glass and 20-60×85 optics bring your target into clear, consistently sharp, high-contrast focus, at distances that overwhelm lesser optics.  A straight eyepiece position  permits a lower scope-mounting height, and allows for better stability and user comfort. The SPOTTER ED is nitrogen filled, waterproof, dustproof, and shock-resistant. All Newcon Optik SPOTTER series spotting scopes feature powerful lenses, and come standard with a durable weather case.

FEATURES
20x to 60x zoom
Clear image at high magnification
Rugged design
Mil-Dot reticle

SPECIFICATIONS

Optics
Magnification (x) : 20
Objective lens diameter (mm) : 85
Focus range (m) : 7 – ∞
Exit pupil (mm) : 4.25 – 1.4
Eye relief (mm) : 20 – 18
Field of view @ 1,000y min mag / max mag (feet) : 105 / 53
Field of view @ 1,000m (m) : 35.0 / 17.7
Diopter adjustment range : ±5
Twilight factor : 41.2 / 71.4 (min mag / max mag)
Relative brightness : 18 / 2 (min mag / max mag)
Reticle type : Mil-Dot

Mechanics, Electronics & Environmental
Weight (g) : 1,30
Dimensions (mm) : 432x105x174
Eye piece type : Straight
Operating temperature range (°C) : -30 to +60
Storage temperature range (°C) : -40 to +65
Nitrogen purged : Yes
Waterproofing : IP67

ACCESSORIES
Camera Video Adapter
NVS U Coupler
